Spark and Sedona at CASD

Datascience team

Goals

  • What is apache spark?
  • Data processing with spark.
  • What is apache sedona?
  • Spatial data processing with sedona.

Why use Apache Spark?

Apache Spark is a distributed computing framework designed for processing and analyzing large-scale data efficiently. Spark is an open-source project under the Apache Software Foundation.

Apache Spark is designed to replace the older distributed computing framework Hadoop. By default, spark performs data computation in memory, not on disk.

Spark is now one of the most widely used big data processing engines.

Spark Key Advantages:

  • Speed: 100 times faster than Hadoop MapReduce
  • Versatility: Batch data processing, Machine learning, Graph analytics
  • Scalability: Single machine, on-premise clusters, public cloud
  • Interoperability: Python, Java, Scala, R and SQL
  • Vast and mature ecosystem

Some disadvantages

  • Requires significant hardware resources: CPU, RAM and network(for cluster mode).
  • Requires complex configuration: vast expertise to set up spark cluster correctly.
  • Deep learning curve: RDDs, DataFrames, DAG scheduling, partitioning.
  • Overhead for Small Jobs: Spark session setup and task scheduling introduce overhead.

Key Concepts in spark Application

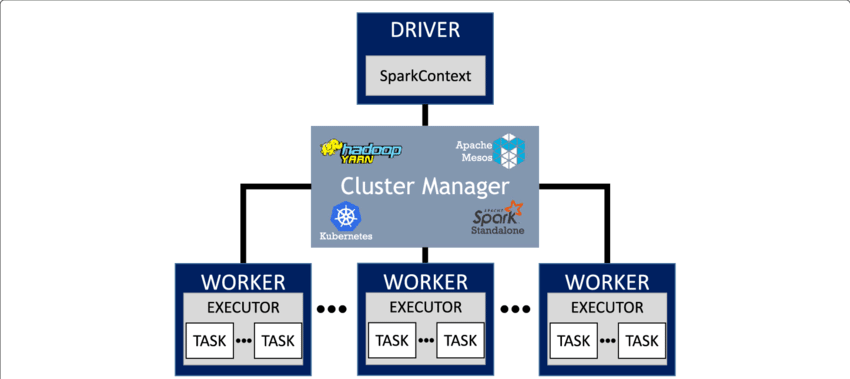

Spark Application contains a driver program and data processing tasks on a cluster.


Key concepts in spark(1):

  • Driver: Coordinates with the cluster manager and worker, translate tasks into the execution plan, sends tasks to executors.
  • Spark Session & Contexts: Entry point of spark application, provides access to DataFrames, SQL queries, and configurations.
  • Cluster manager: Allocates CPU and RAM, determines which task runs where and when, monitors tasks and replaces failed ones.
  • Executor: Run tasks and store data partitions in memory/disk.

Key concepts in spark(2):

  • RDD (Resilient Distributed Dataset): Core data model in spark. A distributed fault tolerance collection of immutable objects.
  • DataFrame: An overlay of RDD, provides sql like operations and optimization(Catalyst, Tungsten)
  • Dataset: Type-safe version of DataFrame, only available for Scala/Java API.
  • Partitioning: Data(RDD, DataFrame, Dataset) is split into partitions distributed across executors.

y concepts in spark(3):

  • Driver program: Directed acyclic graph (DAG) of transformations and actions.
  • Transformations: map, filter, groupBy, etc.
  • Actions: trigger the execution of the transformations before.
  • Lazy Evaluation: Transformations are not executed immediately. Execution happens only when an action is called. Allows Spark to optimize the DAG as much as possible.

Key concepts in spark(advance):

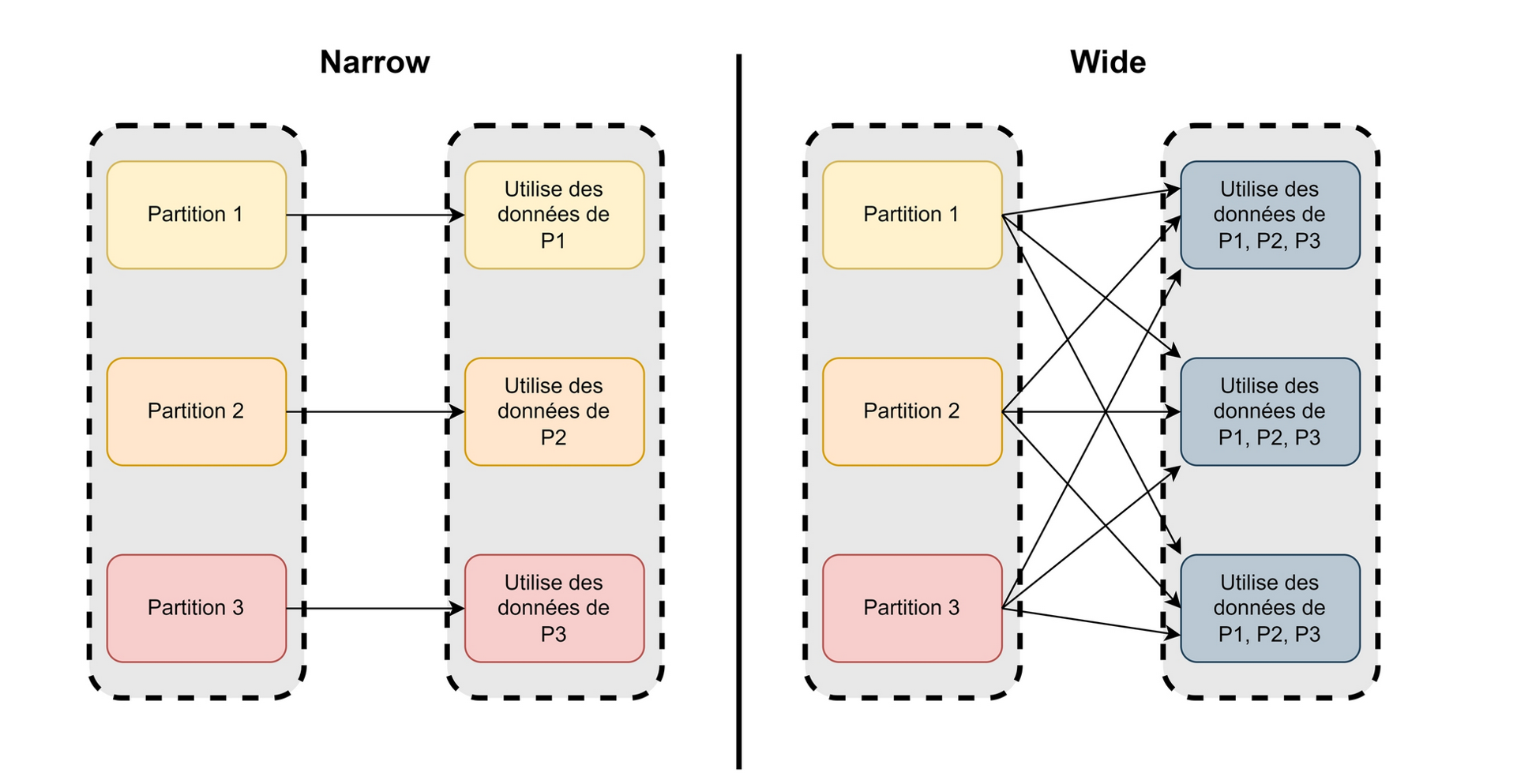

Data shuffling is the redistribution of data across executors. It's one of the most expensive operations, minimizing shuffle is the key for performance.


Spark in CASD

  • Spark cluster mode: local, and yarn with hdfs
  • Spark client API: Python, Java, Scala, R, SQL
  • Integrated Development Environment (IDE): vs-code, r-studio, jupyter notebook
  • Project Structure & Configuration Files: CASD best practices

Install spark in CASD

Why use Apache Sedona?

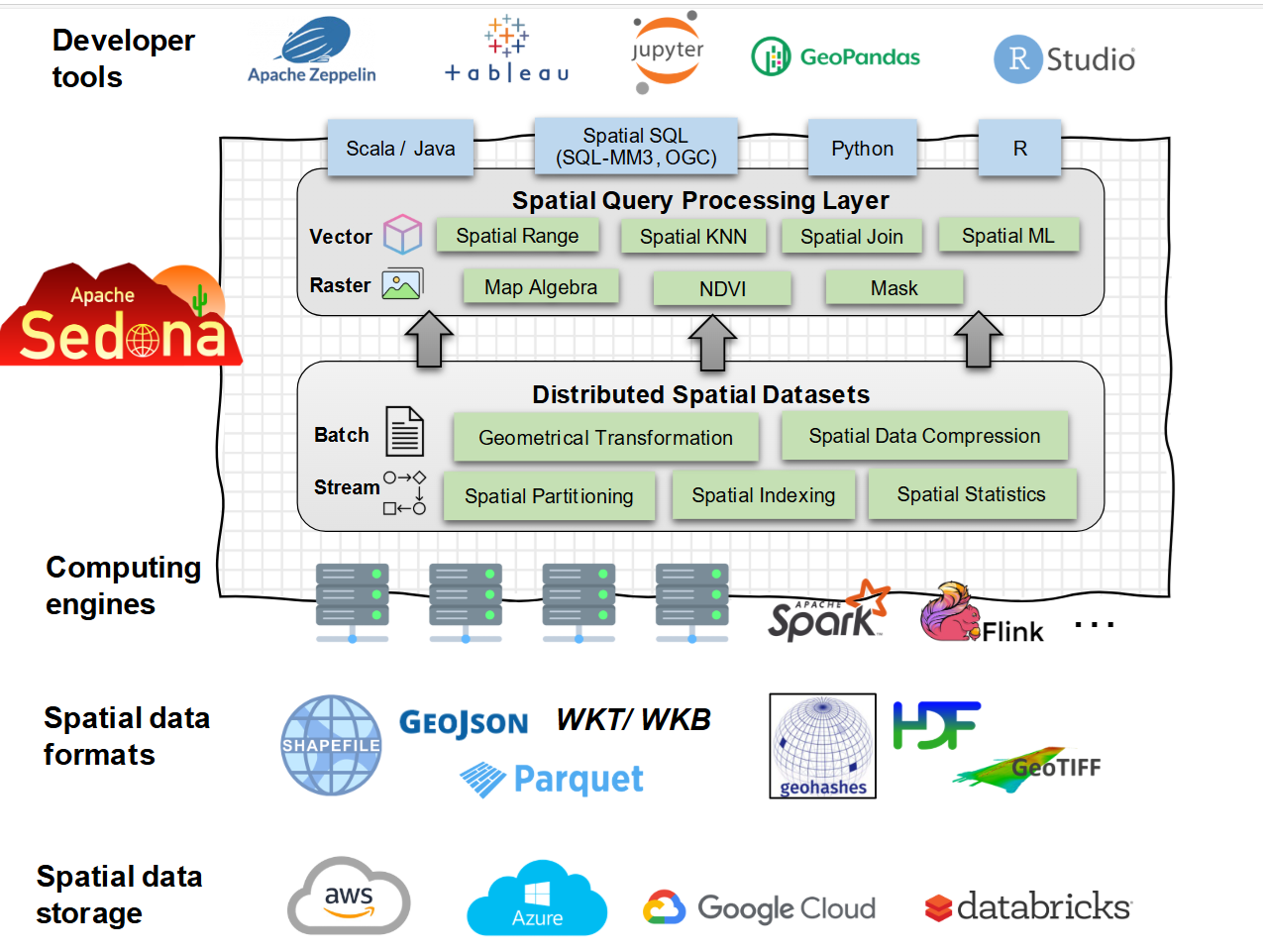

Apache Sedona extends existing cluster computing systems, such as Apache Spark, Apache Flink, and Snowflake for processing large-scale spatial data. It provides distributed Spatial Datasets and Spatial SQL query engine that efficiently load, process, and analyze large-scale spatial data across machines.

CASD provides Apache Spark cluster for Sedona.

Sedona Key Advantages:

  • Speed: 10-100 times faster than GeoPandas
  • Versatility: Read, write and processing vector, raster all in one.
  • Scalability: Can process terabytes of spatial data distributed across a cluster.
  • Interoperability: Python, Java, Scala, R and SQL
  • Rich Spatial Functions: OGC-compliant functions such as ST_Contains, ST_Distance, ST_Intersects, etc.
  • Spatial indexing: Built-in R-tree and Quad-tree indexing to speed up spatial queries

Some disadvantages of Sedona

  • Memory-Intensive: Spatial joins and indexing can cause high memory usage on large datasets.
  • Deep Learning Curve: Requires knowledge with both Spark and geospatial concepts.
  • Limited Raster Support: Raster support is basic compared to specialized GIS tools.
  • Limit cartography Support: Lacks advanced cartography and visualization features

Key Concepts in sedona


Key concepts in sedona(spark):

  • Spatial RDDs : Core data model in sedona(spark) for storing spatial data
  • Spatial DataFrame: An abstraction of Spatial RDDs to simplify usage
  • Spatial Functions: Predefined spatial functions
  • Spatial Partitioning: Distributes data across nodes using spatial boundaries to optimize joins.
  • Spatial Indexing: Indexes geometries (R-tree, Quad-tree) columns to accelerate queries calculation.

Spatial RDDs in Sedona(Spark):

Sedona adds spatial metadata, spatial indexing on top of Spark’s standard RDD to build a Spatial RDD.

  • PointRDD : Core data model to represent points
  • LineStringRDD: Core data model to represent lines
  • PolygonRDD: Core data model to represent polygons
  • RectangleRDD: Core data model to represent bounding boxes
  • RasterRDD: Core data model to represent raster object

Spatial Dataframe in Sedona(Spark):

Sedona adds geometry, raster user define column type on top of Spark’s dataframe to build a Spatial Dataframe. For all spatial columns, it adds spatial SQL function supports(e.g. ST_Contains, ST_Transform, etc.)

  • geometry: stores point, line, polygon, list of polygons
  • raster: stores pixel grids, CRS, etc.
  • geometry sql operators: Thirty plus pre-defined functions for geometry columns
  • raster sql operators: Twenty plus pre-defined functions for geometry columns

Sedona in CASD

  • Computing engine: spark
  • Spark client API: Python, Java, Scala, SQL, R
  • Integrated Development Environment (IDE): vs-code, r-studio, jupyter notebook
  • Project Structure & Configuration Files: CASD best practices

Install sedona in CASD
